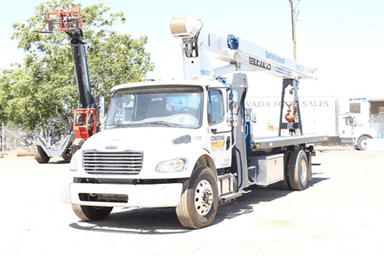

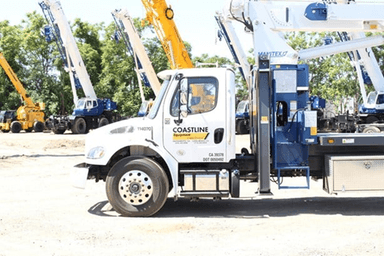

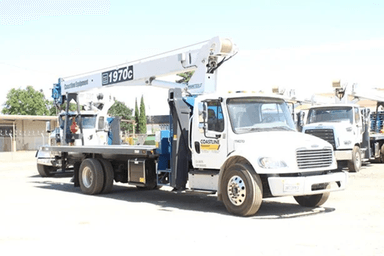

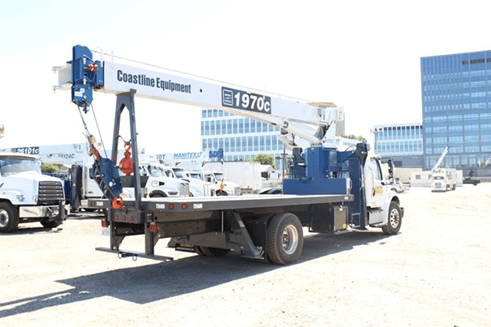

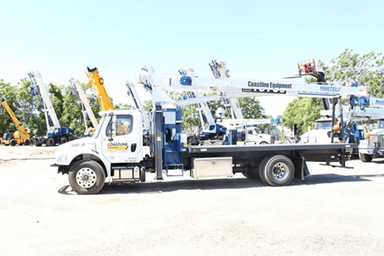

2026 Manitex 1970C Mounted on 2026 Freightliner Business Class M2 106

MANITEX 1970C

19 TON CRANE

Standard features: 70’ Three-Section Telescopic Boom, 19 Ton base rating at 5’ radius, 2-speed Hoist w/Grooved Drum, 7 Ton Hook and Ball, 3-Load Sheave Quick Reeve Boom Head, Externally wired Anti-Two Block w/lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Foot Throttle, Electronic Throttle, Bubble Level, 300’ of 9/16” EIPS IWRC Wire Rope, 70 Gallon HD Reservoir w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Load Moment Indicator – Audio/Visual Alert w/Shutoff, Audible Outrigger /Stabilizer Motion Alarm, A-Frame Outriggers (21’6” spread width), A-frame rear stabilizers, 3-Section Hydraulic Pump – CCW Rotation is Standard, Subframe for 20’ bed, Outrigger Monitoring System verification only, Signal Horn. Additional Options Included: • Radio A2B • 1 Piece 24’ Jib Radio A2B • Standard Mount Installation • 20’ Steel Bed with 1/8 thick Steel Thread Plate • 3 Section Vane Pump-Clockwise Rotation • Hotshift PTO • Drive Shaft for Pump Installation • Rotation Resistant Rope in lieu of Standard • 15 Ton 1-Sheave Quick Reeve Block for 2-3 part line 9/16” rope • Chassis Mounted Hydraulic Reservoir in Lieu of Standard • Aluminum Toolbox (48” L x 24” W x 24” H) – Chassis Mounted MOUNTED ON 2026 FREIGHTLINER M2106 Mounted on a 2026 Freightliner M2106 with a Cummins L9, 360 HP diesel engine, Allison 3000 RDS Automatic Transmission, Detroit DA-F-20.0-5 20,000 lbs. drop single front axle, Meritor MT-40-14x 40,000# R, 50-gallon aluminum fuel tank. Heater and air conditioning with defrosters, full instrumentation, Full power windows, AM/FM/WB with Bluetooth, Single Air Horn Roof Mounted, Dual Mirrors, External Sunvisor, Halogen headlights and unit is painted White. Full set Maxion wheels.

STOCK#126529
